Quatra 4000e

CEL-FI QUATRA 4000e: Your Cost-Effective Enterprise Connectivity Solution

Don't let poor cellular coverage disrupt your business. The unique CEL-FI QUATRA solution delivers a comprehensive enterprise connectivity solution without the enormous cost and hassle associated with traditional indoor DAS. This carrier-approved Hybrid DAS system provides reliable indoor coverage, eliminating dropped calls, and optimising data rates.

By simply harnessing donor signals off air and utilising CAT 5 cabling for easy deployment, the system is can be installed in days proving a multicarrier, multi band indoor coverage solution.

Connectivity Solutions for Every Workplace:

  • Office and Property Management
  • Factory and Warehouse
  • Healthcare
  • Education
  • Retail and Grocery
  • Residential
  • Hospitality
  • Private Networking
  • Critical Communications
  • Carparks
QUATRA 4000e

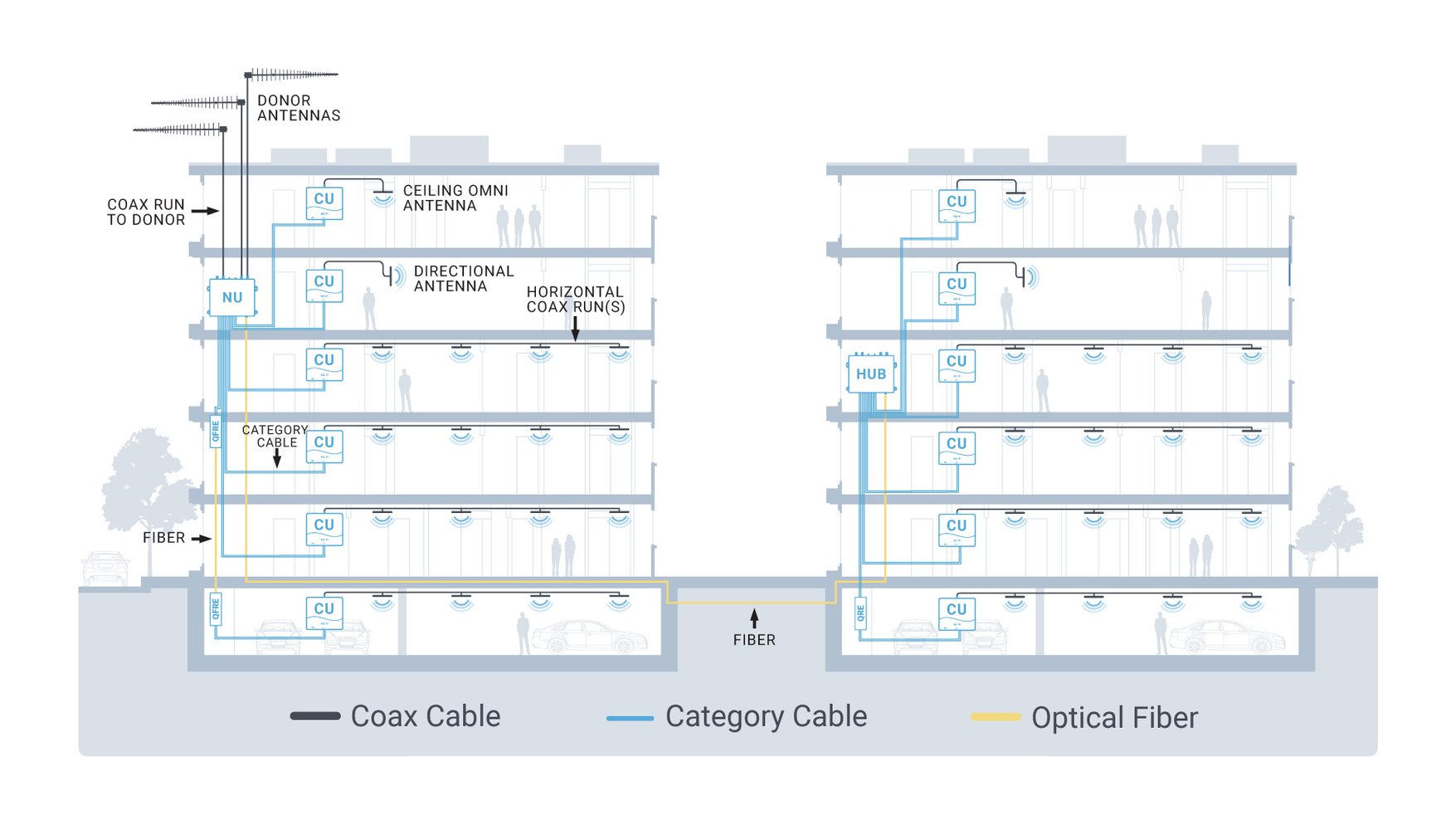

In-Building Quatra 4000e System Infographic

Advanced Cellular Connectivity with CEL-FI QUATRA 4000e:

  • Flexible Deployment: Off-Air or SuperCell Mode with Fibre Expansion.
  • Guaranteed Network Safety: Carrier-approved with a No Noise Guarantee.
  • Remote Management: Real-time monitoring and control via the WAVE Portal.
  • Powerful Signal Amplification: Up to 100 dB Max Gain for 4G and 5G voice and data.
  • Digital Efficiency: All-Digital Category Cable POE/RFoE Solution.
  • Extensive Coverage: Scalable up to 12,000 m2 per unit.

QUATRA 4000e System Components

CEL-FI QUATRA Network Unit (NU)

  • Centralised Control: The NU acts as the system's hub, managing up to six Coverage Units (CUs).
  • Donor Signal Provision: Delivers the necessary donor signal to the QUATRA 4000e system.
  • Power Distribution: Powers up to six Coverage Units (CUs).
  • Remote Management: Enables remote monitoring and control through the CEL-FI WAVE Platform via Ethernet or LTE Modem.
QUATRA 4000e Network Unit

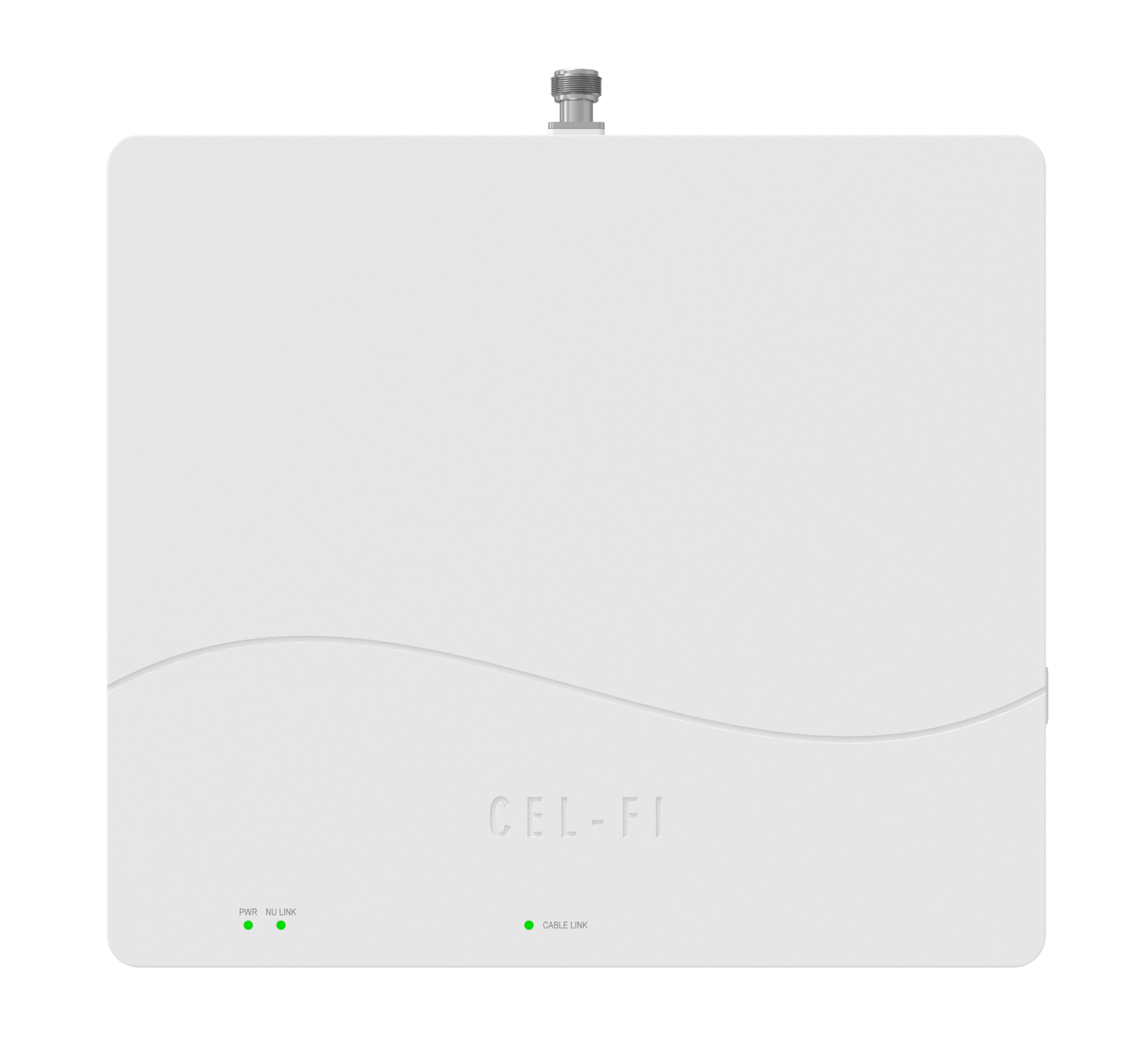

QUATRA 4000e Coverage Unit

CEL-FI QUATRA 4000e Coverage Unit (CU)

  • Remote signal rebroadcast: Extends cellular coverage throughout the designated area.
  • PoE powered: Receives power via Power-over-Ethernet from the Network Unit (NU).
  • Scalability: Supports up to six CUs per NU.
  • Automation: Self-configuring and self-optimising for simplified deployment and operation.
  • Compatibility: Exclusively designed for use with the CEL-FI QUATRA 4000e NU.

CEL-FI QUATRA 4000e Fiber Hub

  • Capacity expansion: Increases Network Unit (NU) support from six to twelve Coverage Units (CUs).
  • Extended deployment: Allows for deployment up to 2.0 km from the NU.
  • Signal integrity: Maintains consistent signal quality across extended distances.
  • System type: Multi-carrier Active DAS Hybrid.
  • Donor source: Fibre optic transmission.
  • Regulatory compliance: Ofcom license exempt.
  • Component requirement: SFP+ module (not included).

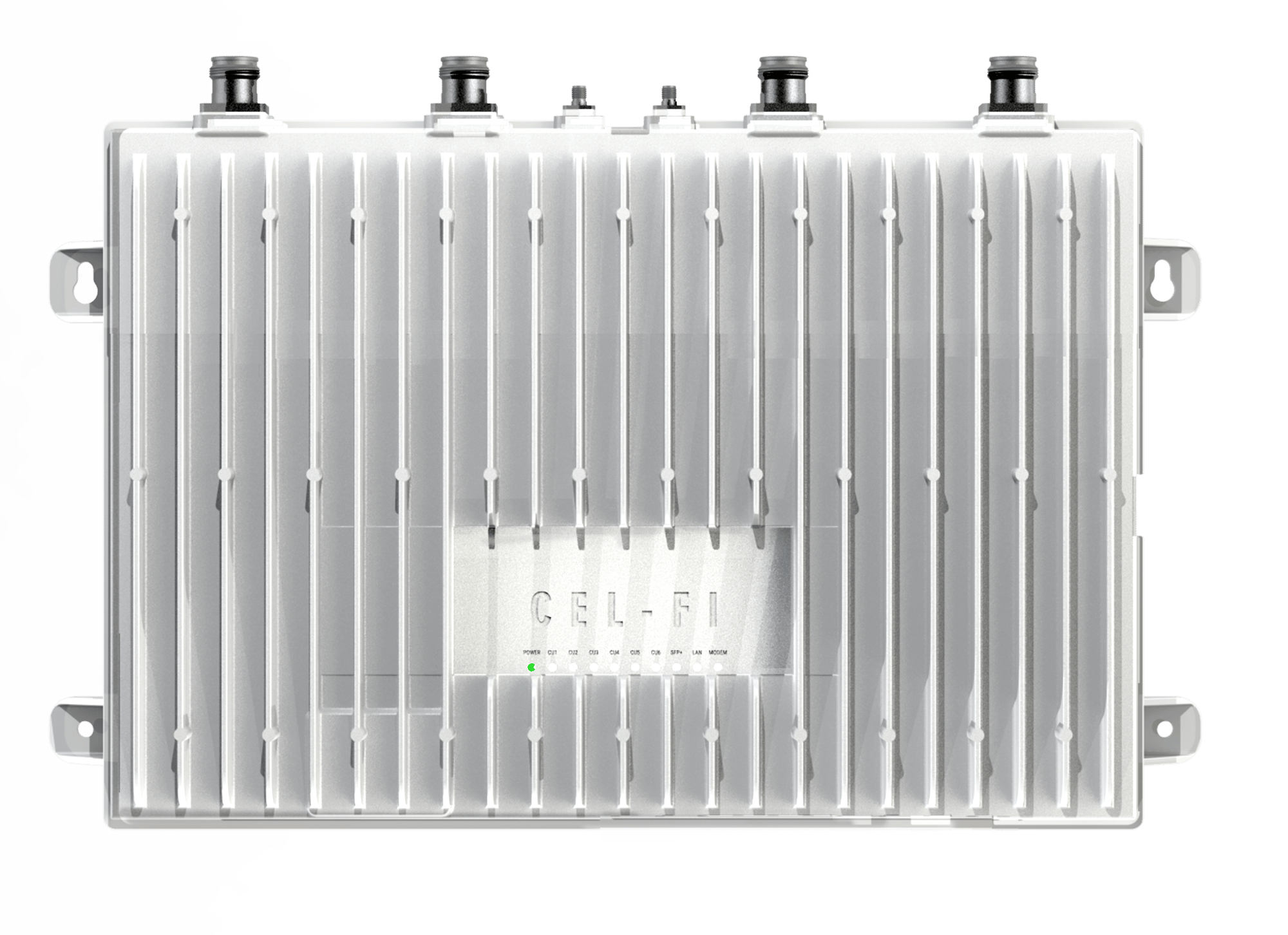

QUATRA 4000e Fibre Hub
